SpeedBox 3.2 B.Tuning for Specialized (Motors 3.1)

SpeedBox 3.2 B.Tuning for Specialized (Motors 3.1)

SpeedBox 3.2 for Specialized Motors 3.1 B.Tuning is a powerful tuning chip for Specialized e-bikes equipped with 3.1 series motors. It removes the factory-set 25 km/h speed limit and allows pedal assist at unlimited speeds. All actual data such as speed, distance, and battery range remain visible on the display.

Features:

• Maximum speed: unlimited
• Speed limit adjustment: yes
• Display shows: actual values
• Activation: SpeedBox App, by pressing the WALK button, or with button combination - + - +
• SpeedBox 3.2 is compatible with the following motors:
  • Specialized 3.1 (101 Nm)
  • Specialized 3.1 S-Works (111 Nm)

How it works

The SpeedBox is installed underneath the controller, inside the frame. Tuning is activated by pressing the WALK button or by using the button combination - + - +. When "35.1 km/h" appears on the display, it indicates the standard speed limit (35 km/h). Deactivate tuning using the same method – you'll then see 25 km/h on the display, and your bike returns to factory settings.

Adjustable maximum speed

You can easily adjust the maximum assist speed by switching riding modes (TRAIL → three down → three up). Every press of the WALK button or spin of the rear wheel raises the speed limit by 5 km/h. The last speed shown is saved after five seconds.

Easy installation

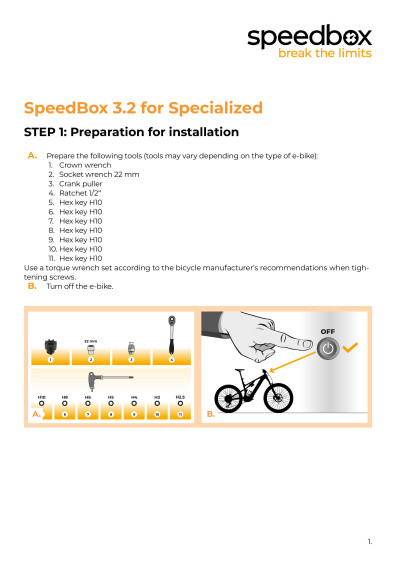

Color-coded connectors make installation straightforward. Clear instructions and video guides are available. Removal is just as easy as installation. For new bikes, it’s recommended to ride at least 10 km before activating the SpeedBox.

The SpeedBox 3.2 is the perfect choice for riders who want maximum freedom and full performance from their Specialized e-bike.

SpeedBox App for SpeedBox 3.2 B.Tuning device

The SpeedBox app connects your e-bike and phone via Bluetooth. The app offers real-time ride data, a ride log, and a range of extra features:

• Tuning management
• Speed limit adjustment
• Ride tracking and history
• Stealth tuning mode
• Motor lock
• Diagnostic functions
• Tire circumference settings

You can try out the app in demo mode before purchasing. Your phone must support Bluetooth version 4.0 or newer.

Warning:

Please note that the use of modified e-bikes of this type on public roads may be illegal. The manufacturer and retailer accept no liability for any damages resulting from the use of SpeedBox products. E-bikes equipped with SpeedBox products must not be used on public roads, bike paths, or in public spaces. They may only be used on private property and entirely at your own risk. The use of SpeedBox may void your bike’s warranty. We strongly recommend using other safety features and protective gear to prevent injuries.

We do not recommend updating your bike’s software, as updates may affect the function of the box.
