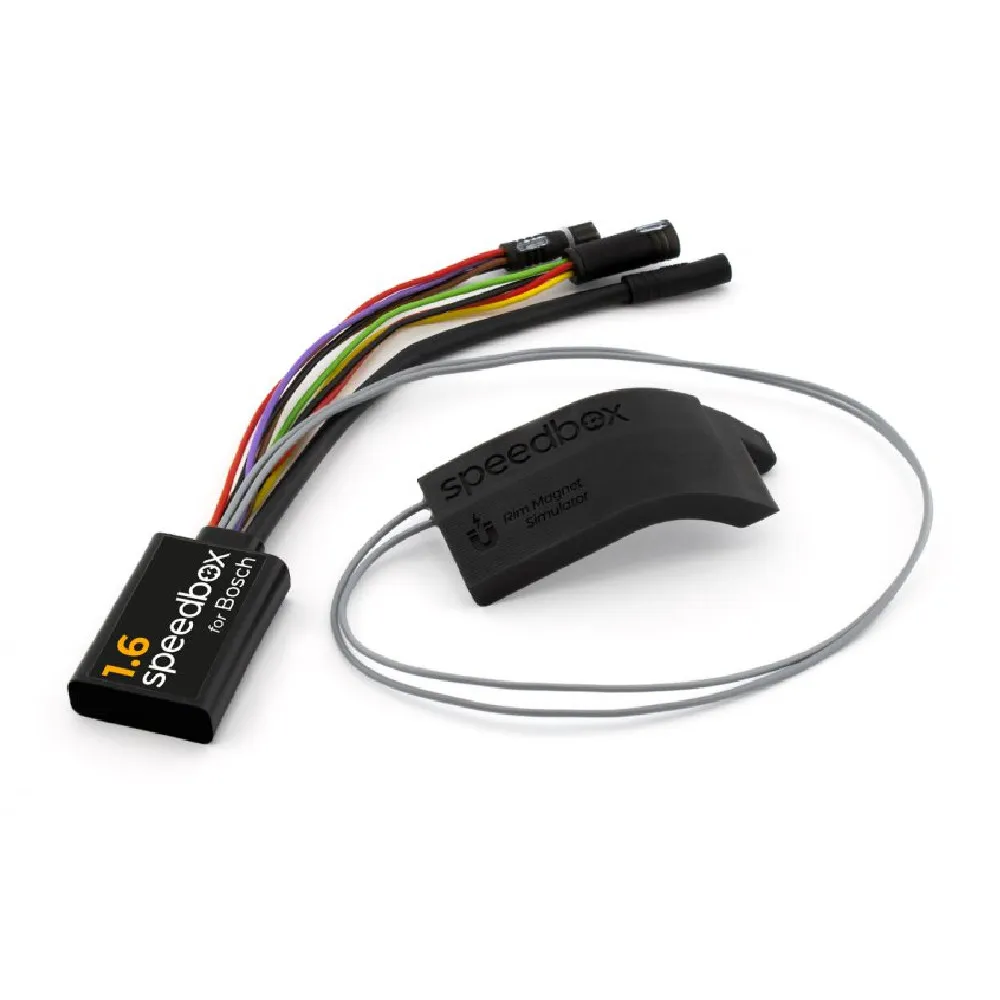

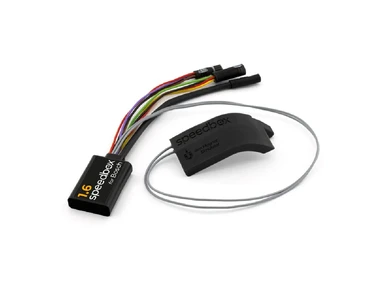

SpeedBox 1.6 for Bosch (Smart System Gen.5 + Rim Magnet)

SpeedBox 1.6 for Bosch (Smart System Gen5 + Rim Magnet)

SpeedBox 1.6 for Bosch Smart System Gen5 Rim Magnet – Power and Freedom in E-Biking

New version – simulator alignment is easier than in the old model!

The SpeedBox 1.6 for Bosch Smart System Gen5 Rim Magnet is a cutting-edge tuning kit that removes the 25 km/h speed limiter from Bosch motors on electric bikes, enabling speeds of up to 35 km/h. This model is specifically designed for Bosch Smart System Gen5 motors and "Rim Magnet" sensors. Installation is user-friendly, and activation is easily done via the bike's WALK function. This tuning allows you to leverage your e-bike's full potential without limitations.

Make your e-biking limitless!

Features:

Maximum speed: No limit (recommended up to 35 km/h)

Display shows:

• Real speed: NO
• Actual distance traveled: YES (once the calculation process is complete)

Activation/deactivation (do not execute while driving):

• Using WALK function or - + - + buttons

Tuning activation/deactivation indicated: YES (3.5/2.5 km/h)

Compatible with:

• Smart System displays
• Bosch Performance Line CX Smart System Gen5 motors

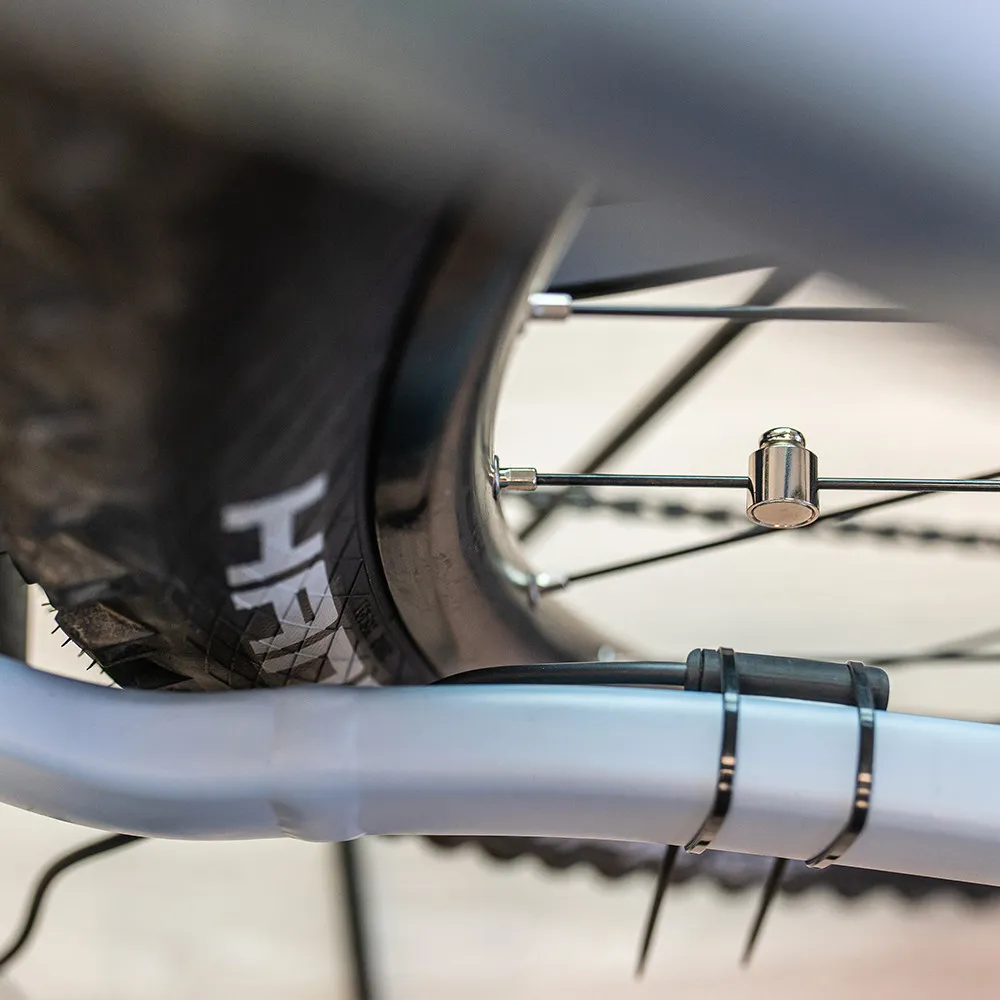

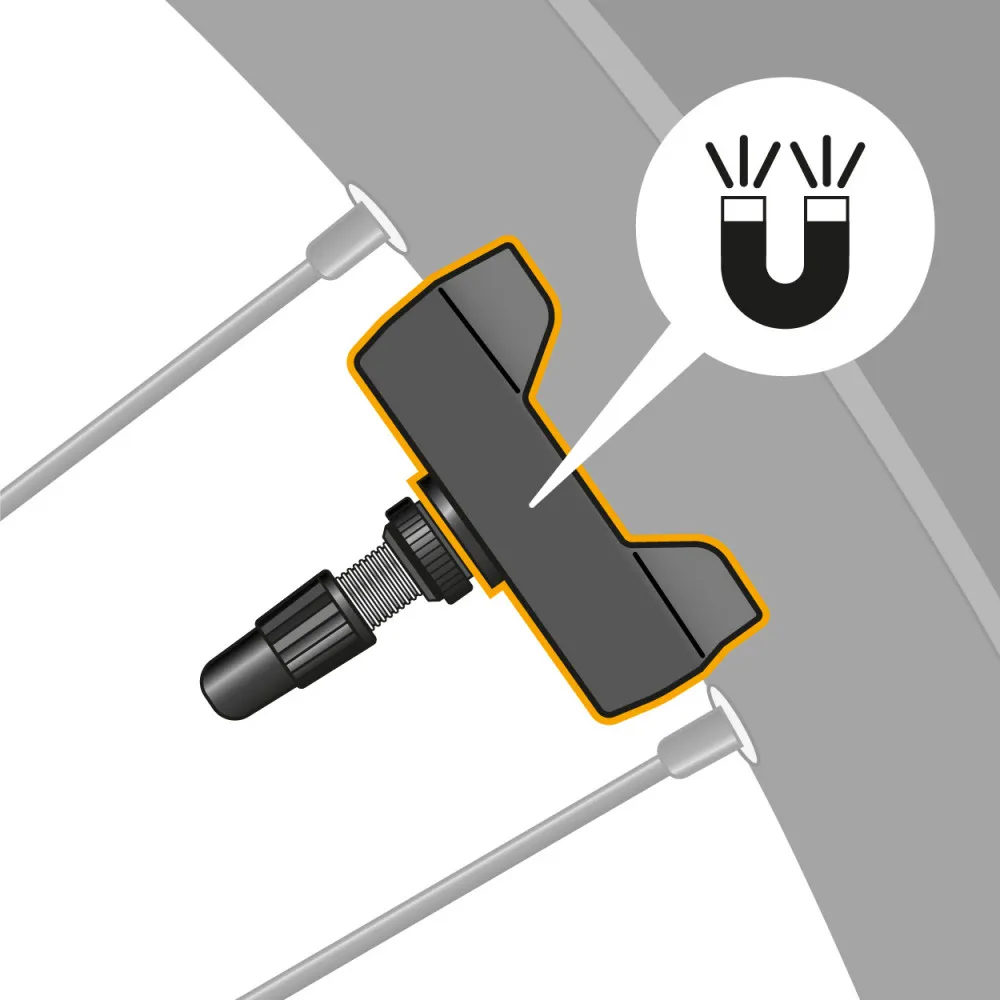

• E-bikes with rim-attached magnet (Bosch Rim Magnet)
• The latest Bosch software version

Not compatible with:

• Standard magnets
• ABS systems
• SpeedBox app
• Gen4 motors
• Performance Line SX

Notes:

• If installing the SpeedBox on a new bike, ride at least 10 km before installation.
• Please check the exact model and motor condition of your e-bike before ordering the product.
• Compatible only with e-bikes with a valve-attached magnet (Bosch Rim Magnet) and Bosch Performance Line CX Smart System Gen5 motor.

Warning:

Note that using these types of modified e-bikes on public roads may be illegal. The manufacturer and reseller are not responsible for damages resulting from the use of SpeedBox products. E-bikes equipped with SpeedBox products must not be used on public roads, bike paths, and public spaces. They are intended for use on private property at your own risk. Using the SpeedBox may void your bike's warranty. We strongly recommend using other safety features and protective gear to prevent injuries.

• We recommend not updating your e-bike’s firmware. Updates increase the detection risk of the tuning.
• Disable automatic updates in the eBike Flow app.
• Note that the SpeedBox warranty does not cover malfunctions caused by motor updates.
• When stopping briefly, to continue riding smoothly, we recommend keeping one foot on the pedal to prevent the countdown from starting.
• If stopping for a longer time, allow at least a partial countdown to occur.
• After a long ride, the countdown can take several minutes.
• Do not remove the display if the countdown has not finished.
• Activate/deactivate tuning before riding (when the e-bike is stationary), not during the ride.
• We recommend not exceeding the speed of 35 km/h.
