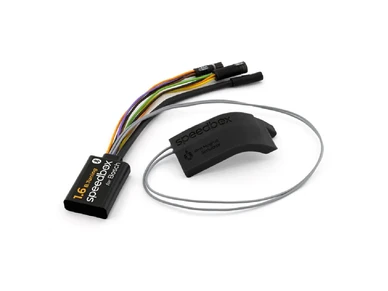

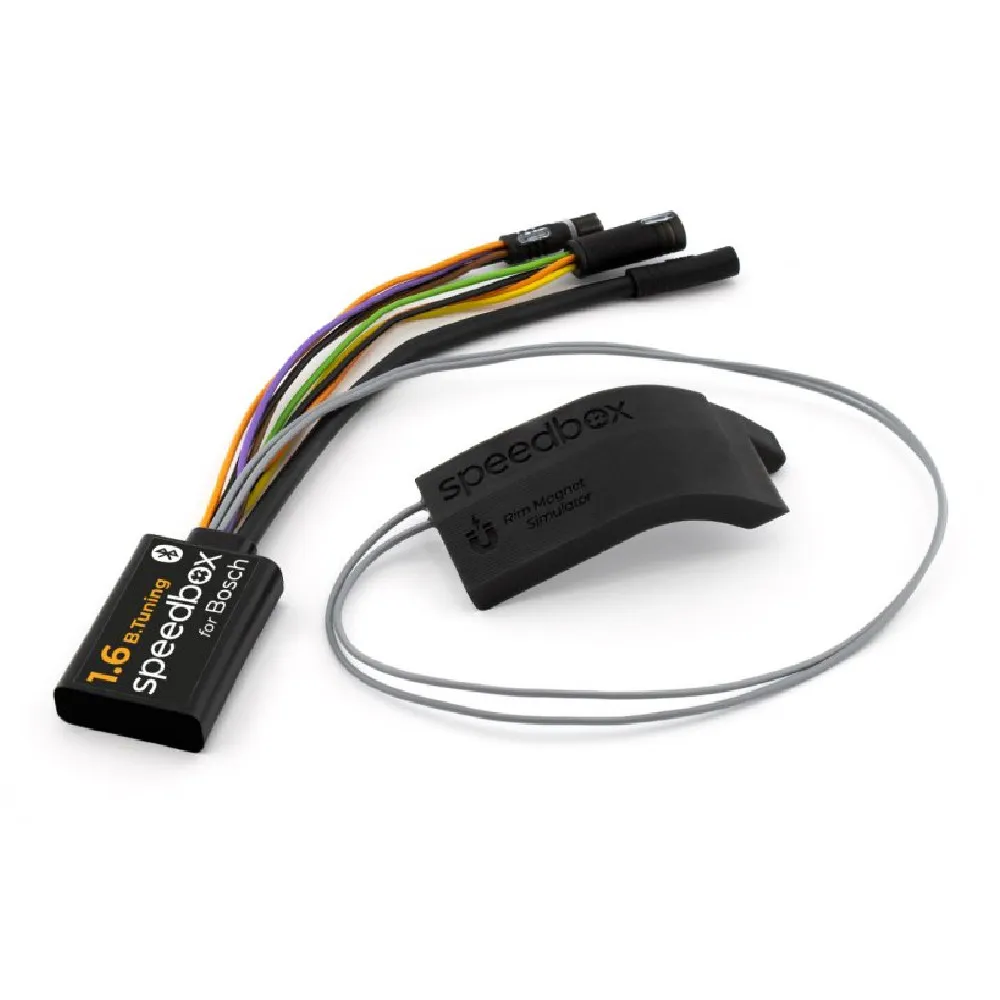

SpeedBox 1.6 B.Tuning for Bosch (Smart System Gen.5 + Rim Magnet)

SpeedBox 1.6 B.Tuning for Bosch (Smart System Gen5 + Rim Magnet)

SpeedBox 1.6 B.Tuning for Bosch Smart System Gen5 Rim Magnet – Power and Freedom in E-biking

Enhanced version – easier alignment of the simulator than in the old model!

SpeedBox 1.6 B.Tuning for Bosch Smart System Gen5 Rim Magnet is a cutting-edge tuning kit that removes the 25 km/h speed limit from Bosch motors on e-bikes, allowing riding speeds of up to 35 km/h. This model is specially designed for Bosch Smart System Gen5 motors and "Rim Magnet" sensors. Installation is user-friendly, and activation is easily done via the bike's control unit using the WALK function. Thanks to this tuning, you can utilize the full power of your e-bike without limits.

Make your e-biking experience limitless!

Features:

Max Speed: No limit (recommended max 35 km/h)

Display Shows:

• Actual speed: NO (correct in SpeedBox App)
• Correct distance: Yes (once the calculation process is complete)

Activation/deactivation (do not perform while riding):

• SpeedBox App
• With the WALK function or - + - + buttons

Indication of tuning activation/deactivation: YES (3.5/2.5 km/h)

Compatible with:

• Smart System displays
• Bosch Performance Line CX Smart System Gen5 motors
• E-bikes with rim-mounted magnets (Bosch Rim Magnet)
• The latest Bosch software version

Not compatible with:

• Standard magnets
• ABS systems
• Gen4 motors
• Performance Line SX

Notes:

• If installing SpeedBox on a new bike, ride it for at least 10km before installing the box.
• Please check the exact model and condition of your e-bike's motor before ordering the product.
• Only compatible with e-bikes equipped with a magnet attached to the valve (Bosch Rim Magnet) and Bosch Performance Line CX Smart System Gen5 motors.

Warning:

Please note that the use of these types of modified e-bikes on public roads may be illegal. The manufacturer and seller are not responsible for any damage resulting from the use of SpeedBox products. E-bikes equipped with SpeedBox products are not to be used on public roads, bike paths, and public places. They should be used exclusively on private property and entirely at your own risk. Using SpeedBox may void your bike's warranty. We strongly recommend using other safety features and protective gear to prevent injuries.

• We recommend not updating your e-bike's firmware. An update increases the risk of detecting the tuning.
• Disable automatic updates in the eBike Flow app.
• Note that the SpeedBox product's warranty does not cover malfunctions caused by motor updates.
• When stopping briefly, to continue riding smoothly, we recommend keeping one foot on the pedal to avoid the countdown starting.
• When stopping for a longer time, allow at least a partial countdown to occur.
• After a long ride, the countdown might take several minutes.
• Do not remove the display if the countdown hasn't finished.
• Activate/deactivate tuning before riding (when the electric bike is stationary), not while riding.
• We recommend not exceeding a speed of 35 km/h.
